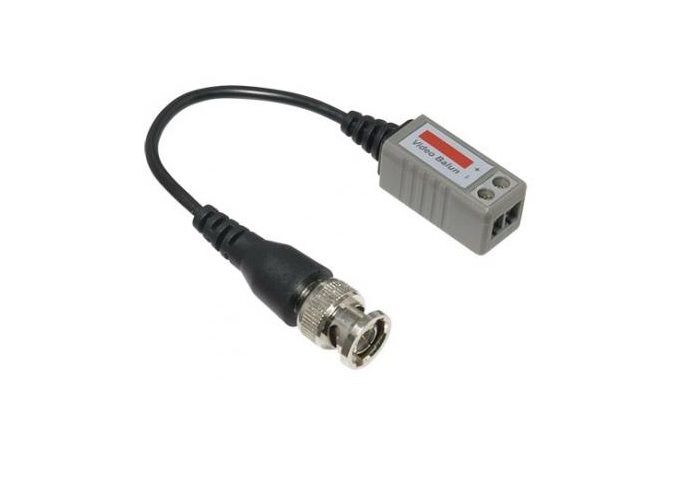

Video Transceiver

Features & Specs:
– Specs: 1CH Passive
– Video: Frequency response: DC-6Mhz Conmmon-mode/Differential-mode Rejection: 15Khz 6Mhz 60dB typ
– Audio/data: No
– Power: No
– Impedance: Coax, male BNC: 75OUTP (Screwless) Terminal Block or UTP RJ45 Data Connector: 100 ohm
– Wire type: 1 Unshielded Twisted Pair 24-16AWG (0.5-1.31mm) Per video signal: DC Loop Resistance 52 ohms per 1,000 ft (18 ohms per 100m)
– Control: NO
– UTP Port: Terminal Block
– Dimensions(mm): 32 x 21 x 15mm
– Weigth(g): 18g
– Environment Temperature: -10degreeC to +50degreeC
– Humidity: 0 – 95%

What’s in the box
Video Transceiver
